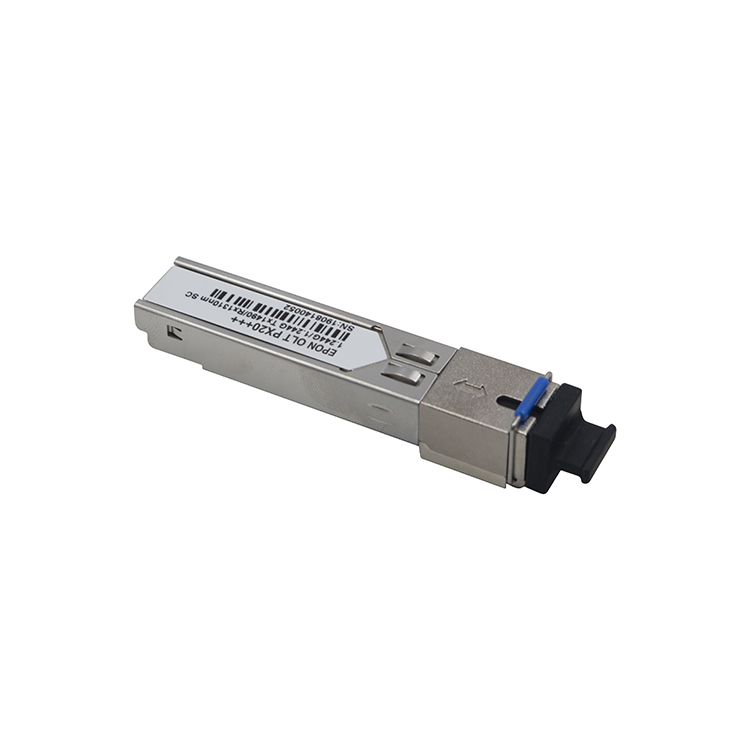

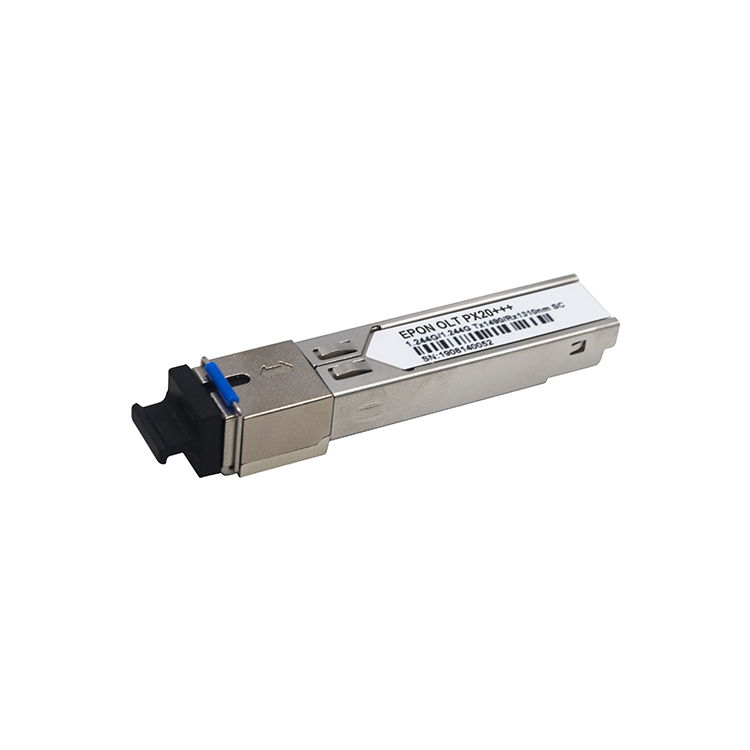

EPON OLT PON Modules PX20+ PX20+++ for FTTH connection PON module price

Brand Name : OPTFOCUS

Model Number : OFS-OLT-ESPX20+++

Certification : CE

Place of Origin : China

MOQ : 1 pcs

Price : 28.5 USD per PCS

Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20000 pcs per month

Delivery Time : 5-7 days

Packaging Details : Box/Carton

Connector : SC/UPC

wavelength : 1310/1490nm

Operation Tem : 0-70℃

Transmission : 1.25G

Contact Now

EPON OLT PON Modules PX20+ PX20+++ for FTTH connection

EPON OLT PON Modules PX20+ PX20+++ for FTTH connection PON module price

Features:



  • SFP with SC/UPC Receptacle Transceiver
  • 1490 nm DFB Tx
  • 1310 nm APD Rx
  • Digital diagnostics SFF-8472 Compliant
  • 1250 Mbps continuous mode Transmission
  • 1250 Mbps Burst mode receiver Data Rate
  • Provide fast RSSI function
  • Operation case temperature: 0~70°C
  • Complies with RoHS directive (2002/95/EC)

 Application



  • GEPON OLT IEEE802.3ah 1000BASE-PX20+++
  • FTTx

EPON OLT PON Modules PX20+ PX20+++ for FTTH connection PON module price

Recommended Operating Conditions



Parameter Symbol Min. Max. Unit
Storage Temperature TSTG -40 85 °C
Operating Case Temperature TC 0 70 °C
Power Supply Voltage VCC 3.1 3.5 V
Total Power Supply Current ICC - 350 mA



Transmitter Characteristics



Parameter Symbol Min. Typ. Max. Units Notes
Optical Transmitter Power P0 6 7.5 11 dBm 1
Optical Transmitter Power off POFF - - -39 dBm
Output Center Wavelength λ 1480 - 1500 nm
Output Spectrum Width Δλ - - 1.0 nm
Side Mode Suppression Ratio SMSR 30 - - dB
Extinction Ratio ER 9 - - dB
Optical Rise Time - - - 260 ps
Optical Fall Time - - - 260 ps
Optical Eye Diagram Compliant with IEEE Std 802.3ahTM-2004
Tolerence to Tx Back Reflection - -15 - - dB
Data Rate - - 1.25 - Gb/s
Single Ended Data Input Voltage Swing VPP 200 - 1200 mV
Differential Input Impedance ZIN 80 100 120 ohm
Tx_fault Output Voltage- High VOH 2.4 - - V
Tx_fault Output Voltage- Low VOL - - 0.4 V
Tx_Dis Input Voltage- High VIH 2.0 - - V
Tx_Dis Input Voltage- Low VIL - - 0.8 V





Digital Diagnostic Monitoring Accuracy



Parameter Accuracy Units Notes
Transceiver Temperature ±3 °C Temperature sensor
Power Supply Voltage ±3 % Vcc=3.13~3.47V
TX Bias Current ±10 mA -
TX Optical Power ±3 dB Average Power
Rx Receiver Power ±3 dB -
